Heavy-Duty Agricultural Castings for Global Farming Equipment

Wear-resistant components designed to survive the world's most abrasive soil conditions

Factory-Direct Pricing | ASTM A536 Ductile Iron Specialists
SUBMIT BULK ORDER RFQ
VIEW CAPABILITIES
35+
YEARS IN
OPERATION
14+
COUNTRIES
SERVED
ISO
9001:2015
CERTIFIED
ASTM
STANDARD
COMPLIANT
⚠ WE ARE A BULK MANUFACTURING FOUNDRY — OEM BATCH ORDERS ONLY | MINIMUM ORDER QUANTITIES APPLY
NO RETAIL · NO SINGLE-PIECE ORDERS · NO WALK-IN SALES
What We Cast

Industrial Parts
Capabilities

Engineered casting solutions for Pakistan's core industrial sectors. Share your technical drawing and we will confirm material, process and production timeline.

⚙️

Pump & Impeller Casting

High-efficiency impellers, pump housings and volute casings for centrifugal and submersible pump applications across water treatment, agriculture and chemical industries.

Cast Iron HT-250 SG Iron A536 SS 304/316
🔩

Gearbox & Housing Casting

Precision gearbox bodies, motor housings and transmission cases for textile machinery, sugar mills and general engineering applications requiring dimensional accuracy.

Cast Iron SG Iron MS 4140
🏭

Motor Body Casting

Electric motor end shields, frames and stator housings cast to exact dimensional specifications. Serving motor manufacturers and electrical OEMs across Pakistan.

Cast Iron Aluminium Custom Alloy
💨

Compressor Components

Air compressor sleeves, cylinder heads and bearing housings cast in high-grade cast iron. Tight bore tolerances maintained for reliable sealing performance.

Cast Iron HT-250 Pearlitic Iron
🔧

Guide Vanes & Brackets

Industrial guide vanes, machinery brackets, mounting flanges and structural components cast to your engineering drawings in a wide range of ferrous and non-ferrous alloys.

SG Iron SS 304/316 Brass
⚡

Shell & Sand Casting

Shell moulding and green sand casting for medium to large industrial components where investment casting is not required. Cost-effective for simpler geometries at high volumes.

Shell Moulding Sand Casting No-Bake
Materials & Specifications

Materials We Cast

Material Grade Standard
Cast Iron HT-200, HT-250, HT-300 IS/ASTM
SG Iron GGG40, GGG50, A536 ASTM A536
Carbon Steel WCB, WCC, LCB ASTM A216
Stainless Steel 304, 304L, 316, 316L ASTM A743
Alloy Steel MS 4140, MS 8620 AISI
Aluminium LM6, LM24, ADC12 BS/JIS
Brass Leaded, Naval, Free-Cut BS 2874

Production Specifications

Technical parameters for OEM procurement planning. Contact our engineering team for part-specific confirmation.

Casting Processes Investment · Sand · Shell · Die
Weight Range 1 gram — 150 kg
Dimensional Tolerance ±0.127mm (0.005")
Surface Finish Ra 1.6 – Ra 6.3 as-cast
Minimum Order Qty OEM Batches Only
Post-Casting Machining In-House CNC Available
Delivery Coverage Nationwide Pakistan
Documentation Full MTR + MTC Provided
Zero Defect Protocol

Quality
Assurance

Every batch goes through a multi-stage inspection process before dispatch. Full documentation provided with each shipment for complete audit compliance.

01

Spectrometer Chemical Analysis

On-site OES spectrometer verifies exact metallurgical composition against your specified grade before pouring begins.

02

CMM Dimensional Inspection

Coordinate Measuring Machine verification against your CAD/drawing to confirm dimensional accuracy on critical features.

03

Mechanical Testing

Hardness testing (Rockwell/Brinell) and tensile testing confirm structural performance meets your application requirements.

04

NDT — X-Ray, MPI & DPT

Non-destructive testing for internal defects, surface cracks and porosity — available for critical applications and pressure-rated parts.

Certifications

Certified
Standards

🏅
ISO 9001:2015
Quality Management System — Valid till Dec 2026
📋
ASTM Standards
A216, A743, A351, A536 — Verified per batch
🔬
Full MTR / MTC
Material Test Reports with every shipment
✅
PFA Certified
Pakistan Standards Accredited Facility
Why Ahmed Corporation

Why Pakistani OEMs
Choose Us

01

Replace Imports — Cast Local

Stop paying import premiums for Chinese or Indian industrial castings. Ahmed Corporation delivers the same quality direct from our Pakistan foundry at significantly lower total cost. No customs delays. No currency risk.

02

One-Stop Manufacturing Partner

We cast, machine and finish your parts under one roof. In-house CNC machining means your components arrive ready to install — eliminating your need for a separate machining vendor and reducing your supply chain complexity.

03

Full Documentation — Every Batch

Complete Material Test Reports, dimensional inspection certificates and spectrometer analysis provided with every order. Designed for procurement departments that require full audit compliance and traceable supply chains.

04

35+ Years — Proven Track Record

Since 1989, Ahmed Corporation has supplied precision industrial castings to manufacturers across Pakistan and exported to 14+ countries. Your OEM production requirements are backed by decades of foundry expertise.

05

Rapid Prototype to Production

Use our 3D-printed wax and sand patterns to validate your component design before investing in permanent tooling. Fail fast at prototype stage — not after committing to production tooling costs.

06

Nationwide OEM Delivery

Regular supply to Lahore, Karachi, Faisalabad, Gujranwala, Sialkot, Multan and all major industrial cities across Pakistan. Consistent batch delivery schedules aligned to your production planning requirements.

Also Available

Industrial Valve
Casting

Ahmed Corporation also specialises in bulk OEM casting of industrial valve bodies across all types and material grades. WCB, CF8M, Cast Iron and Ductile Iron available.

View Valve Casting Capabilities  →
Gate Valve
WCB · CF8M · Cast Iron · LCB
Globe Valve
SS 304 · SS 316 · WCB
Check Valve
Cast Iron · Cast Steel · CF8M
Butterfly Valve
Ductile Iron · CF8M · CI
Ball Valve
WCB · SS 304 · SS 316
Sluice Valve
Cast Iron · Ductile Iron

Product Categories

Filter

Products Categories

Agriculture Machinery Parts

Knotter Assembly of Mower and Reaper Binder machine

Material: MS 4140
Quick View

Agriculture Machinery Parts / Agriculture Parts

Needle Hive

Material: AI-ZL 102
Size: 253x150x102mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

Double Finger Part

Material: MS 4140
Size: '184x150x39 mm
Quick View

Agriculture Machinery Parts

Tensioner

Material: MS 4140
Size: 83x39x38mm
Quick View

Agriculture Machinery Parts

Clutch Releaser

Material: MS 4140
Size: 99x67.5x26mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

Rope Thumb

Material: MS 4140
Size: 51x20x46 mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

Clutch

Material: MS 4140
Size: 170x28x73mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

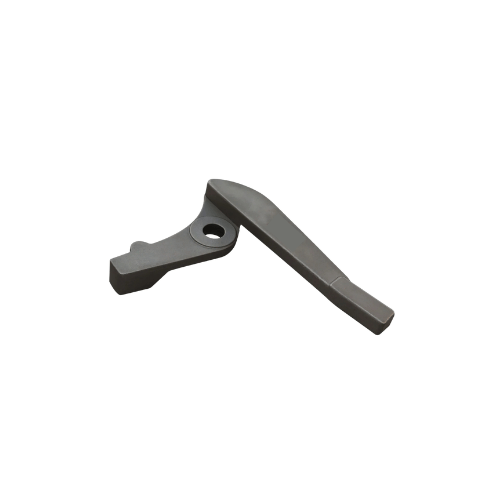

Trigger

Material: MS 4140
Size: 149x116x25 mm
Quick View

Agriculture Machinery Parts

Needle Arm

Material: SS 304
Size: 188x44x11mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

Latch part

Material: MS 4140
Size: '210x88x22.5mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

Latch

Material: MS 4140
Size: 210x88x22.5 mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

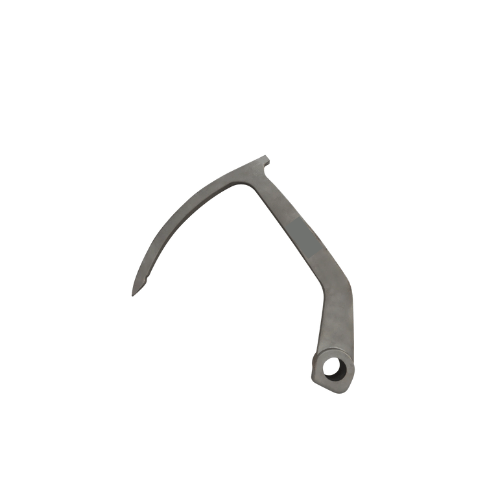

Needle

Material: MS 4140
Size: 295x245x50mm
Quick View

Agriculture Machinery Parts / Agriculture Parts

Gear Part 8 Teeth

Material: MS 4140
Size: 9"x35mm
Quick View

Modern farming demands zero downtime. Ahmed Corporation delivers rugged agricultural castings that resist abrasion, impact, and corrosion. We partner with OEMs to produce high-performance tillage, seeding, and harvesting parts.

High-Chrome Iron: Maximum hardness for ground-engaging tools (plow shares, points).

Austempered Ductile Iron (ADI): Superior strength-to-weight ratio for heavy machinery.

Protective Coatings: Zinc plating and powder coating for chemical and moisture

Optimized Geometry: Self-sharpening designs for ground-engaging tools.

Impact Resilience: Guaranteed grain structure to prevent field breakage.

Why Global Buyers Choose Ahmed Corporation?

Optimize Your COGS: Strategic Sourcing from Pakistan’s Premier Foundry Without Quality Compromise.

Fail Fast, Succeed Sooner: Digital Wax Printing to Test Fit, Form, and Function Without Tooling Costs.

Frictionless Global Logistics: Expert Export Handling for On-Time Delivery to US and UK Ports.

Zero-Defect Philosophy: Rigorous Batch Testing and Documented Chemical Verification for Every Part.
